Sheet metal edge nut A Raymond, variable thicknesses

FGTI-Distribution > ARaymond Fixings > Detailed Technical Datasheets > Retaining Clips and Nuts > Nuts

	Nutsching nuts on panel edges Sheet metal edge nut / For variable thicknesses	On board panels

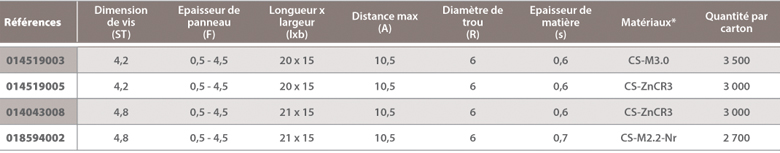

Dimensions – Sheet metal edge nut All dimensions are in mm and angles in ° / Other dimensions and variations available on request
– To fix an item to a panel using an ST screw – These clips can be mounted on panel edges as well as in the middle of panels – Thanks to their straps, they clamp completely on both sides of the supports, ensuring excellent positioning for screw mounting – These clips reinforce the support sheets and stay in place if unscrewed – The design allows for the absorption of different panel thicknesses, and optimises the positioning of the prestole footprint on its support. – For pre-mounting on front panels before screwing (e.g. for transport), favour versions with retaining tabs

Nutsching nuts on panel edges Sheet metal edge nut / For variable thicknesses
