Adapter to mount in panel edges / With tubes parallel to the panel

FGTI-Distribution > ARaymond Fixings > Detailed Technical Data Sheets > Adapters for Straps and Tube Holders > Adapters for Mounting on Panel Edges for Tube Holders with Tubes Parallel to the Panel

	Panel edge mounting adaptors Parallel tube holder bracket to panel	On panel surfaces

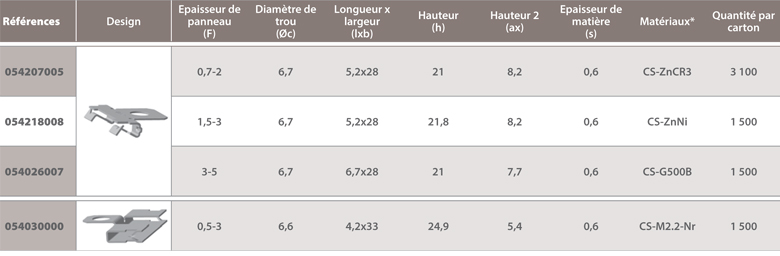

Dimensions – Adapter for parallel tube support to panel All dimensions are in mm and angles in ° / Other dimensions and variations available on request
– Multi-function terminal block for mounting on panel edges - Suitable for all ARaymond clips for Ø6.5 to 6.7 mm holes – With retaining claws		Supports for clips-on tubes in a hole

Panel edge mounting adaptors Parallel tube holder bracket to panel

On panel surfaces

Dimensions – Adapter for parallel tube support to panel

Supports for clips-on tubes in a hole

Panel edge mounting adaptors
Parallel tube holder bracket to panel
