	Supports for metal tubes Metal support tube for panel edges with variable diameters	Support tube edges of panels

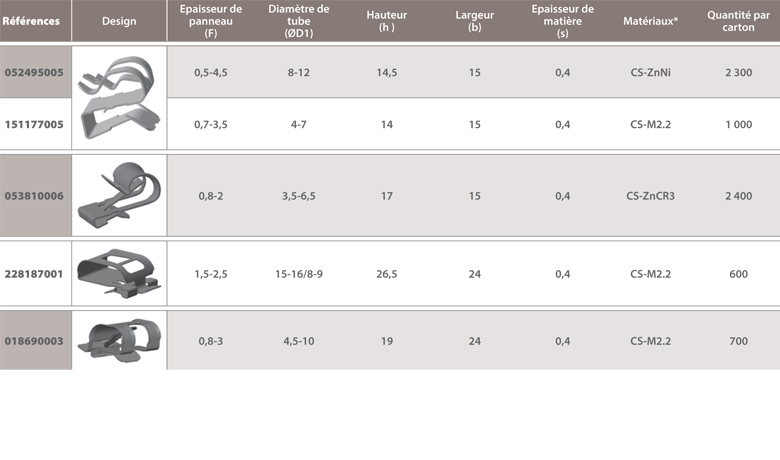

Dimensions - Metal support tube for panel edges of varying diameters All dimensions are in mm and angles in ° / Other dimensions and variations available on request
- To fix a tube to panel edges - To be mounted with a mallet - With retaining claws - With raised edges to protect the tube

Supports for metal tubes Metal support tube for panel edges with variable diameters

Support tube edges of panels

Dimensions - Metal support tube for panel edges of varying diameters
